Drawing: Scale - 3

Blue ink on graph paper, 24 by 36 inches

Please click on the arrows to view the details in the slideshow below :

Notes following the order of the images:

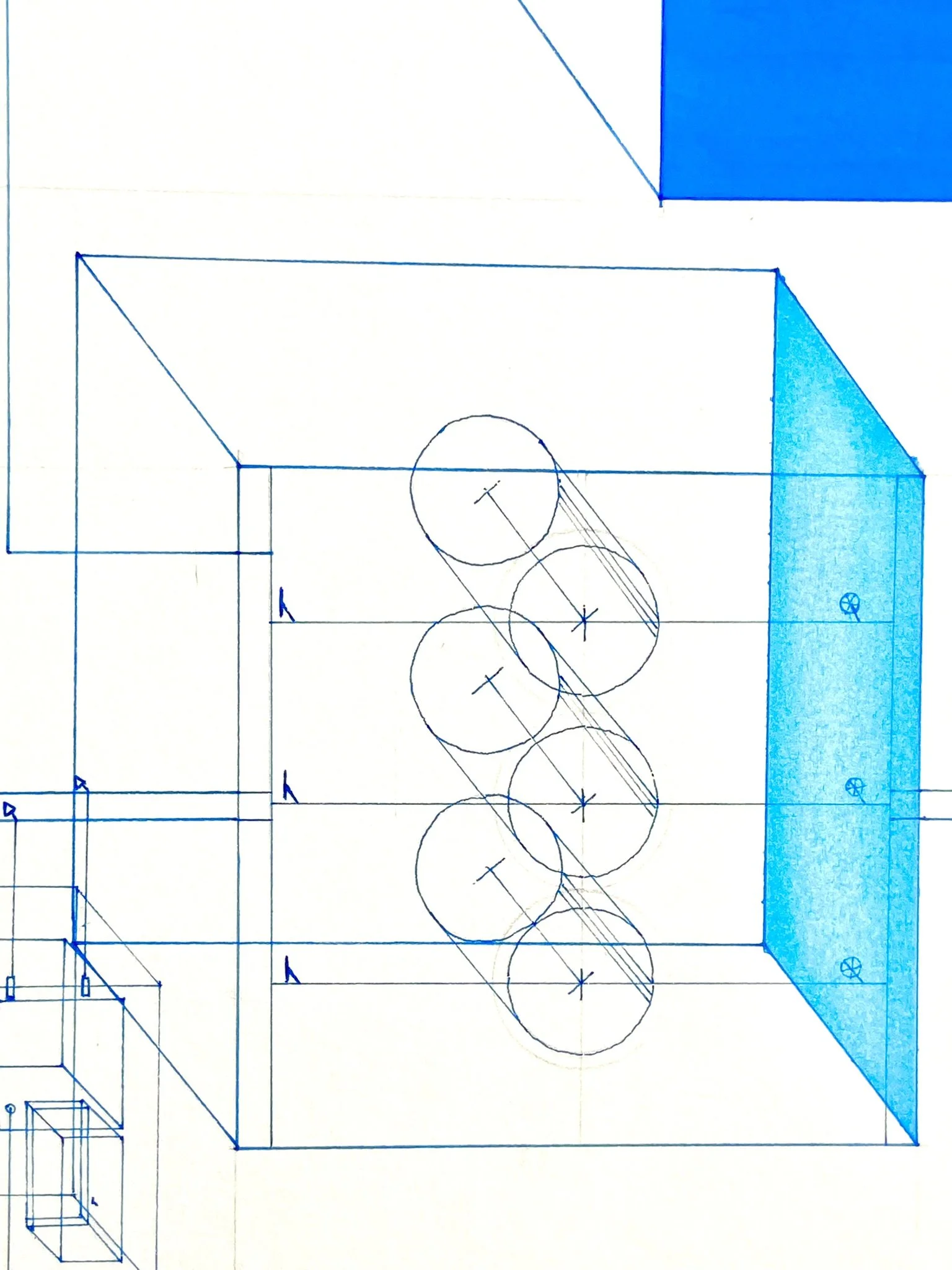

The mechanical layouts of the water filtration devices/

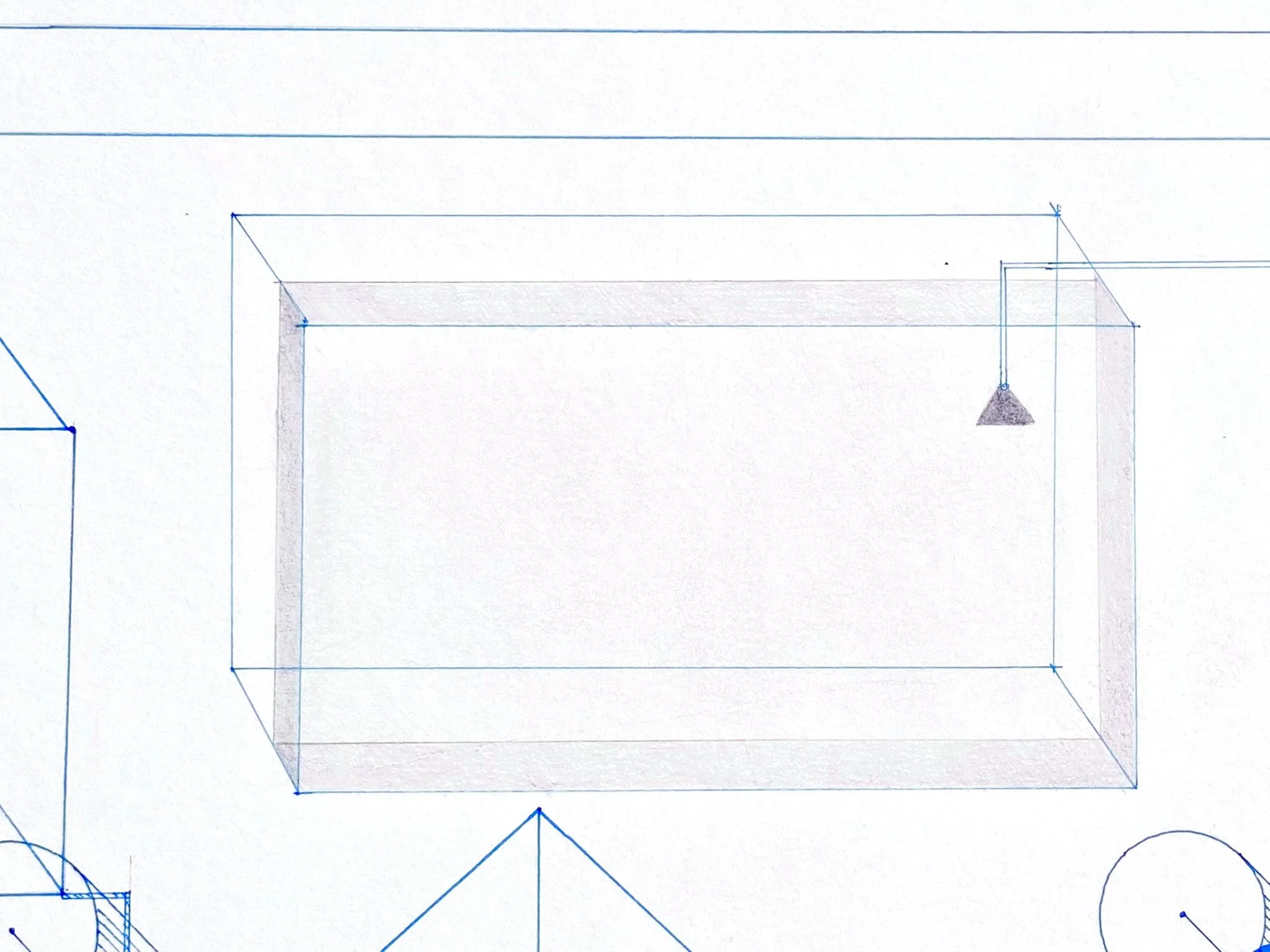

The pre-storage tank/

The water pump/

Filtration controls/

Blackwater collection from the toilets, basins, and showers; and the grey-water gathered from the roof drainage/

The bathroom, hand-washing basin, storm sinks, and washing machine drops/

The black-water pretreatment, sedimentation collections, and division of dirt/

Vegetated areas are used to absorb and filter nitrogen and phosphorus/

The eco-machine further absorbs the organic substances and chemicals in the treated blackwater/

The eco-machine details/

Treated/purified blackwater contains organic chemicals that can be used to nourish crops.
